STEEL AND ALUMINUM SKATE WHEEL CONVEYORS

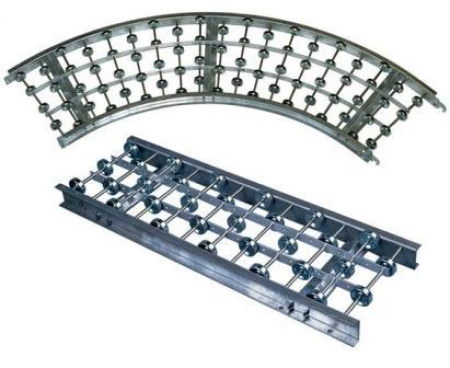

Skate Wheel Conveyors
Skate Wheel Conveyors

AW and SW Series Skate Wheel Conveyors

    • Wheels: 2” x 5/8” Ball Bearing
    • Axles: 1/4” on 3” Centers
    • Steel Frame: 2-1/2” x 1” x 1”, 12 Ga. Galvanized
    • Aluminum Frame: 2-1/2” x 1” x 1/8” Formed Channel
    • 5 Cross Braces
    • 2 Full Length 1” x 1/8” Alum. Center Supports
    • Hook and Bolt Couplers Standard
    • 10’ Frame Capacity – Steel: 50lbs/ft, Alum: 30lbs/ft
    • 5’ Frame Capacity – Steel: 200lbs/ft, Alum:100lbs/ft

Skate wheel conveyors are well suited to glide lightweight cartons and packages from one station to another. They’re particularly ideal if you must set up a temporary conveyor line. Merely hook the sections together and away you go.

Skate Wheel Conveyor 5' Section

SKU
Overall Width
Width Between Rails
Wheels Per Foot
Weight Steel | Aluminum
 Price Each Qty.
12-*W-06-5
12"
10"
6
30 | 18
12-*W-10-5
12"
10"
10
34 | 21
12-*W-12-5
12"
10"
12
36 | 22
12-*W-16-5
12"
10"
16
40 | 25
18-*W-12-5
18"
16"
12
39 | 25
18-*W-14-5
18"
16"
14
41 | 26
18-*W-16-5
18"
16"
16
43 | 28
18-*W-18-5
18"
16"
18
45 | 29
24-*W-18-5
24"
22"
18
48 | 32
24-*W-20-5
24"
22"
20
50 | 34
24-*W-24-5
24"
22"
24
54 | 36
24-*W-28-5
24"
22"
18
58 | 39

Skate Wheel Conveyor 10' Section

SKU
Overall Width
Width Between Rails
Wheels Per Foot
Weight Steel | Aluminum
 Price Each Qty.
12-*W-06-10
12"
10"
6
55 | 38
12-*W-10-10
12"
10"
10
62 | 40
12-*W-12-10
12"
10"
12
65 | 45
12-*W-16-10
12"
10"
16
72 | 46
18-*W-12-10
18"
16"
12
71 | 48
18-*W-14-10
18"
16"
14
75 | 51
18-*W-16-10
18"
16"
16
78 | 53
18-*W-18-10
18"
16"
18
82 | 59
24-*W-18-10
24"
22"
18
88 | 48
24-*W-20-10
24"
22"
20
91 | 61
24-*W-24-10
24"
22"
24
98 | 66
24-*W-28-10
24"
22"
28
106 | 71

45 Degree Curves

SKU
Overall Width

Wheels Per Foot
Weight Steel | Aluminum
 Price Each Qty.
12-*W-10-45
12"
10
17 | 11
18-*W-16-45
18"
16
22 | 15
24-*W-20-45
24""
20
26 | 18

90 Degree Curves

SKU
Overall Width

Wheels Per Foot
Weight Steel | Aluminum
 Price Each Qty.
12-*W-10-90
12"
10
24 | 22
18-*W-16-90
18"
16
42 | 27
24-*W-20-90
24"
20
50 | 33
