LIGHT DUTY STEEL AND ALUMINUM CONVEYORS

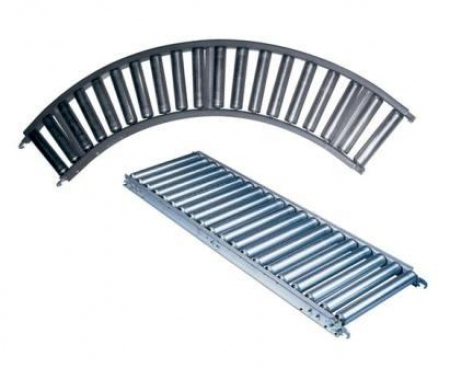

Light Duty Roller Conveyors
Light Duty Roller Conveyors

1-3/8 Inch Roller Conveyors

    • Rollers: 1-3/8”, 18 Ga. Galvanized or Aluminum
    • Axles: 1/4” Round, Spring Loaded
    • Frame: 2-1/2” x 1” x 1”, 12 Ga. Galv. or 1/8” Alum. Formed Channel
    • 5 Cross Braces
    • Hook and Bolt Couplers Standard
    • Roller Cap. – Steel: 50 lbs, Alum.: 40 lbs
    • 10’ Frame Capacity – Steel: 50lbs/ft, Alum: 30lbs/ft
    • 5’ Frame Capacity – Steel: 200lbs/ft, Alum: 100lbs/ft

Price updates due to volatility in the steel market are impossible to keep up with. We have removed pricing on this page. Please add the items to your cart and request a quote.


These 1-3/8” diameter gravity roller conveyors are extremely popular and are a standard in the industry. Ideal for the movement of light-medium weight packages. They are easily portable and can be used as a temporary or a permanent conveyor line.

Straight Roller Conveyor 5' Section

SKU
Roller Centers
Overall Width
Width Between Rails
Weight Steel | Aluminum
 Price Each Qty.
138*R1512-5
1-1/2"
12"
10"
61 | 34
138*R1518-5
1-1/2"
18"
16"
81 | 44
138*R1524-5
1-1/2"
24"
22"
102 | 54
138*R312-5
3"
12"
10"
41 | 22
138*R318-5
3"
18"
16"
52 | 27
138*R324-5
3"
24"
22"
63 | 33
138*R4512-5
4-1/2"
12"
10"
34 | 18
138*R4518-5
4-1/2"
18"
16"
42 | 22
138*R4524-5
4-1/2"
24"
22"
50 | 36
138*R612-5
6"
12"
10"
30 | 15
138*R618-5
6"
18"
16"
36 | 19
138*R624-5
6"
24"
22"
42 | 23

Straight Roller Conveyor 10' Section

SKU
Roller Centers
Overall Width
Width Between Rails
Weight Steel | Aluminum
 Price Each Qty.
138*R1512-10
1-1/2"
12"
10"
111 | 62
138*R1518-10
1-1/2"
18"
16"
148 | 80
138*R1524-10
1-1/2"
24"
22"
186 | 99
138*R312-10
3"
12"
10"
74 | 40
138*R318-10
3"
18"
16"
94 | 50
138*R324-10
3"
24"
22"
114 | 60
138*R4512-10
4 1/2"
12"
10"
61 | 32
138*R4518-10
4 1/2"
18"
16"
76 | 40
138*R4524-10
4 1/2"
24"
22"
90 | 48
138*R612-10
6"
12"
10"
55 | 28
138*R618-10
6"
18"
16"
66 | 35
138*R624-10
6"
24"
22"
77 | 42

45 Degree Curves

SKU
Roller Centers
Overall Width

Weight Steel | Aluminum
 Price Each Qty.
138-*R-1512-45
1-1/2"
12"
35 | 20
138-*R-1518-45
1-1/2"
18"
45 | 25
138-*R-1524-45
1-1/2"
24"
56 | 30
138-*R-312-45
3"
12"
24 | 15
138-*R-318-45
3"
18"
27 | 17
138-*R-324-45
3"
24"
28 | 18

90 Degree Curves

SKU
Roller Centers
Overall Width

Weight Steel | Aluminum
 Price Each Qty.
138-*R-1512-90
1-1/2"
12"
65 | 39
138-*R-1518-90
1-1/2"
18"
85 | 49
138-*R-1524-90
1-1/2"
24"
110 | 59
138-*R-312-90
3"
12"
48 | 30
138-*R-318-90
3"
18"
53 | 34
138-*R-324-90
3"
24"
54 | 37
