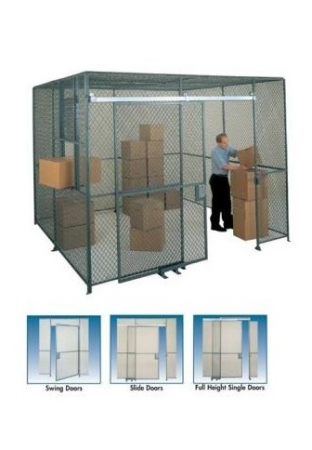

WOVEN WIRE PARTITIONS
Complex Steel Wire Partitions
- Panels are constructed of woven 1-1/2" 10 gauge diamond style mesh.
- Mesh is clinched into a heavy 1/8" thick structural channel frame for extra strength and rigidity.
- Floor shoes are high grade iron casting with set screw, plus two slotted holes for floor attachment. Anchors are included.
- Top capping channels are 1 1/2" x 1/2 " x 1/8" hot rolled channel. Two fasteners are provided with each channel.
- Standard size panels are available in 1’, 2’, 3’, 4’, and 5’, widths; 7’, 8’, and 10’ heights.
- Stock Hinged Doors…are made in 3’ and 4’ widths and are 7’ high with transom above.
- No transom on 7’ high partition.
- Unless requested otherwise, doors are supplied hinged left, swing out (viewed from outside partition enclosure).
- Sliding Single Doors…are available 3’, 4’, 5’ and 6’ widths and are 7’ clear with transom above.
- All necessary bolts, nuts, clips and floor lags included.
A fast and economical way to create security areas, section off hazard areas, construct tool rooms, maintenance rooms, stock rooms, electrical equipment rooms…all at low cost and fast installation. Partitions are coated with a Gray enamel.
