TANK TOP MAINTENANCE LIFT

Tank Top Lift Gray2
Tank Top Lift Gray2 Tank Top Lift2

Ballymore Tank Top Lift

    • Provides easy access to tank trucks, railroad cars or cantilevered applications
    • Great for clearing snow and ice off tops of trailers
    • Manually propelled for use on hard level surfaces
    • 48” long cantilevered platform
    • Hydraulic hand pump raises and lowers platform
    • Step and deck tread is open serrated grating
    • Slip resistant rungs provide access when platform is raised
    • Base is 28” wide and 60” long, fixed outriggers spread 69”
    • Full rails on both sides with gates at each end of platform
    • Two swivel and two rigid 8” casters for use on hard surfaces
    • Two adjustable stabilizing jacks secure lift to ground

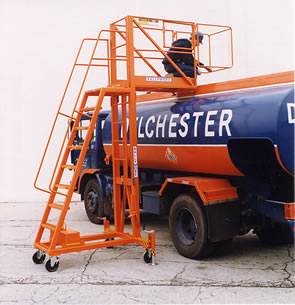

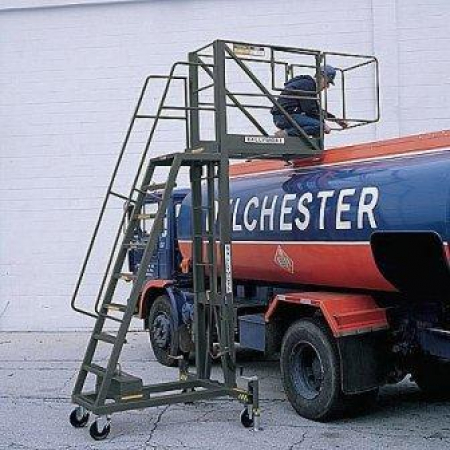

Tank top lift shown with optional (but recommended) 30” extension railing. Standard color is Gray, Safety Orange is recommended for outdoor applications. Adjustable or non-adjustable 9' to 13' under clearance height.

Ballymore Tank Top Lift

SKU
PLATFORM MAX HT.
PLATFORM MIN HT.
PLATFORM L X W
 UNDERCLEARANCE HT. Price Each Qty.
TT913
13'-8"
9'-4"
48" X 24"
TT913F
13'-8"
9'-4"
48" X 24"
TT-7-11
11'-8"
7'-4"
48" X 24"
TT-11-15
15'-8"
11'-4"
48" X 24"

Accessories for Tank Top Lift

SKU

DESCRIPTION

 Price Each Qty.
TTL-TRAY
TOOL TRAY
$0
TTL-TUBEHOLDER
FLORESCENT TUBE HOLDER
$0
TTL-RECEPTACLE
PLATFORM DUPLEX RECEPTACLE
$0
TTL-RAILING
REMOVABLE EXTENSION RAILING 30"
$0
